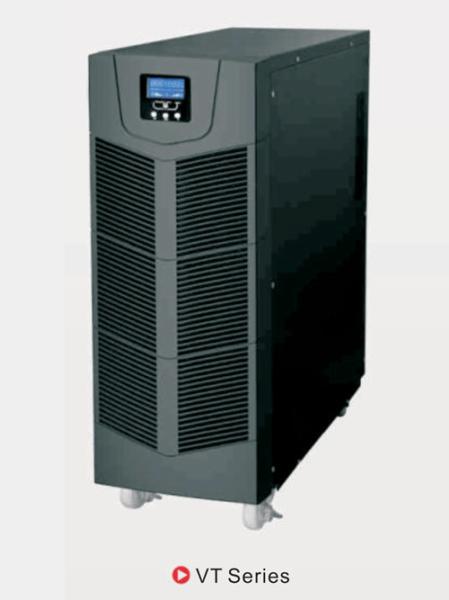

Double Conversion Uninterruptible Power Supply Single / Three Phase UPS System

Name: Double Conversion Uninterruptible Power Supply Single Three Phase UPS System
Brand: Modern
Price: 1 USD

Best Double Conversion Uninterruptible Power Supply Single / Three Phase UPS System wholesale

Brand Name : Modern

Model Number : On-Line High Prequency UPS(10-20KVA)

Certification : CE,ISO 9001

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 500 unit/month

Delivery Time : 30 days

Packaging Details : Wooden Packing

Rated capacity : 10KVA-20KVA

Input Range of Voltage : 274~474VAC(full load)

Output Range of Voltage : 220Vac/230Vac ±2%

Frequency : 40-60Hz(50Hz)/50~70Hz(60Hz)

Weight(Kg) : 24/39.5

Dimension(mm) : 560×260×717

Transfer time : 0ms

Output Waveform : Sine wave

Contact Now

Energy Saving 10-20KVA Uninterruptible Power Supply,On-Line High Prequency UPS,Three Phase Input /Single Phase Output

Description:

The protector of large scale critical use

On-line UPS has a similar working principle as the ups except for a larger load capacity to deploy in large scale electrified places having high requirements on quality of power supply.

As a user-friendly policy,the ups supports various operating systems,also support the TCP/IP local network and remote monitoring.

True On-Line UPS

Functions&features:

DSP system
Wide AVR range
True on-line UPS
IGBT technology
Double Conversion
Overload and short circuit protection
LCD display
N+X parallel connection(6-20KVA)
Cold start
Intelligent slot for SNMP adaptor(optional)
On-line maintenance service
Isolation transformer(optional)

Product

Certfication

CE:

Standard:EN62040-2:2006

(EN61000-4-2:2009, EN61000-4-3:2006+A1:2008+A2:2010,

EN61000-4-4:2004+A1:2010,

EN61000-4-5:2006,

EN61000-4-6:2009,

EN61000-4-8:2010,

EN61000-4-11:2004

,EN61000-2-2:2002)

Double Conversion Uninterruptible Power Supply Single / Three Phase UPS System
